TTCUP03
TT-CUP03-BLK

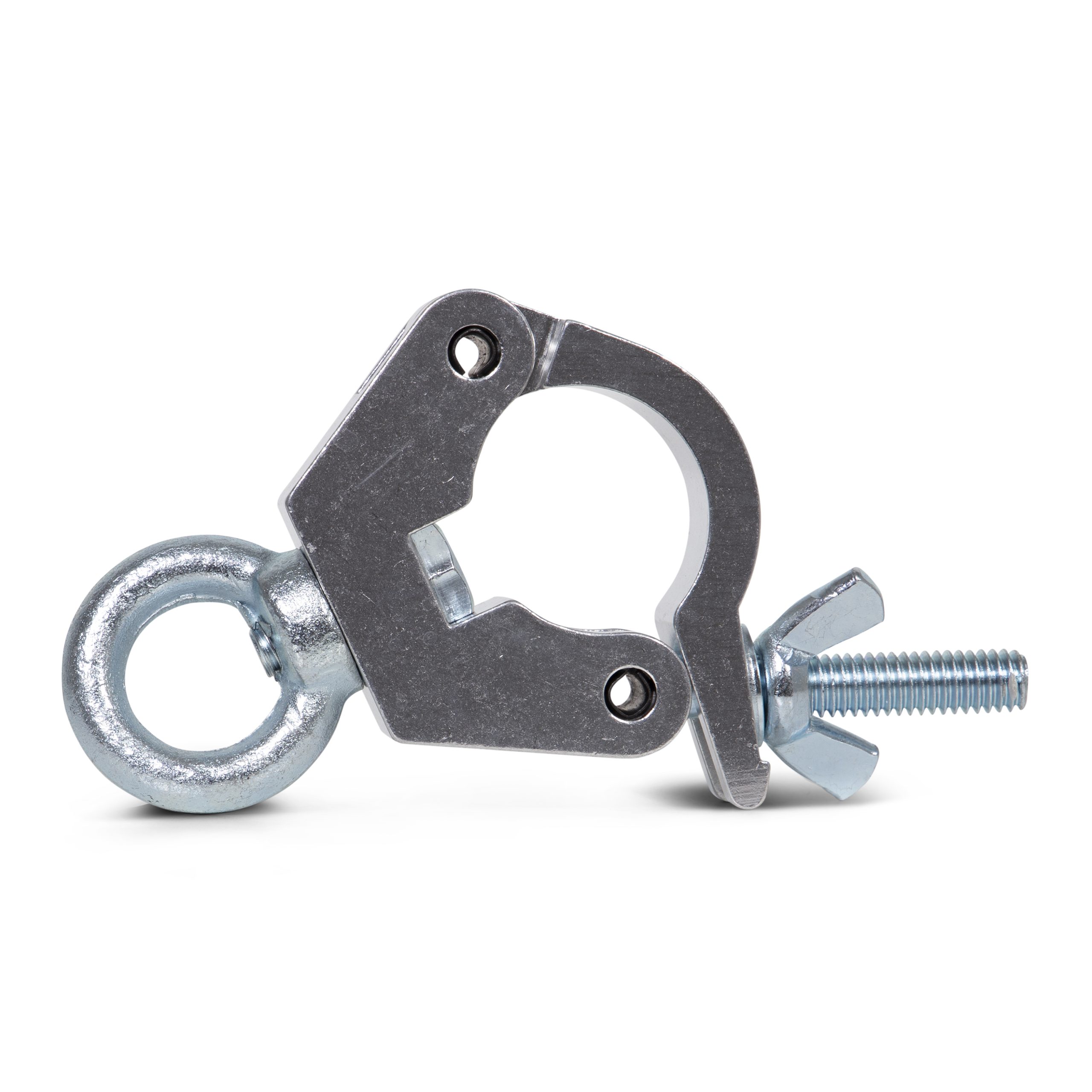

Half Coupler Clamp TT-CUP03

Key Specification

WLL
450 kg
Tube Diameter
48-51 mm
Clamp Width
30 mm
Units per Box
32
Add to quote
Categories: ,

Product Details

Fit Tube 48-51 mm
Load capacity 450 kg
Width 30 mm
Attachment M12 Hex Bolt and eye nut
Locking Wing nut
Material AL 6061-T6
Treatment Natural Polishing / Black Oxide
Weight 0.60Kg
TUV Certified
Datasheet Half-Coupler-Clamp-TT-CUP03.pdf
